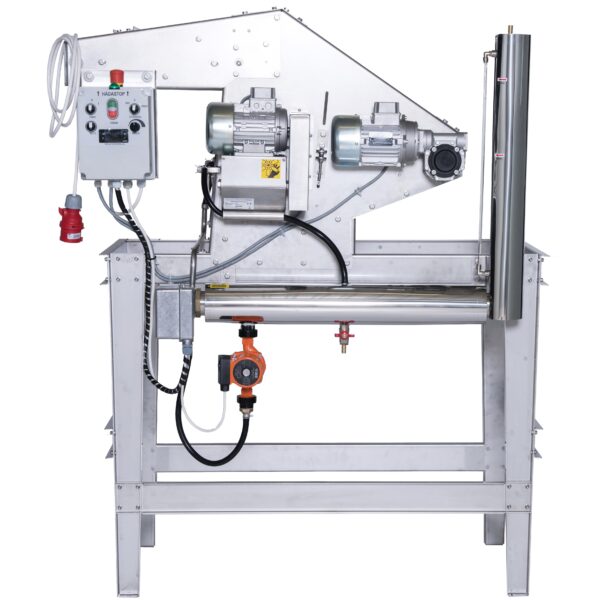

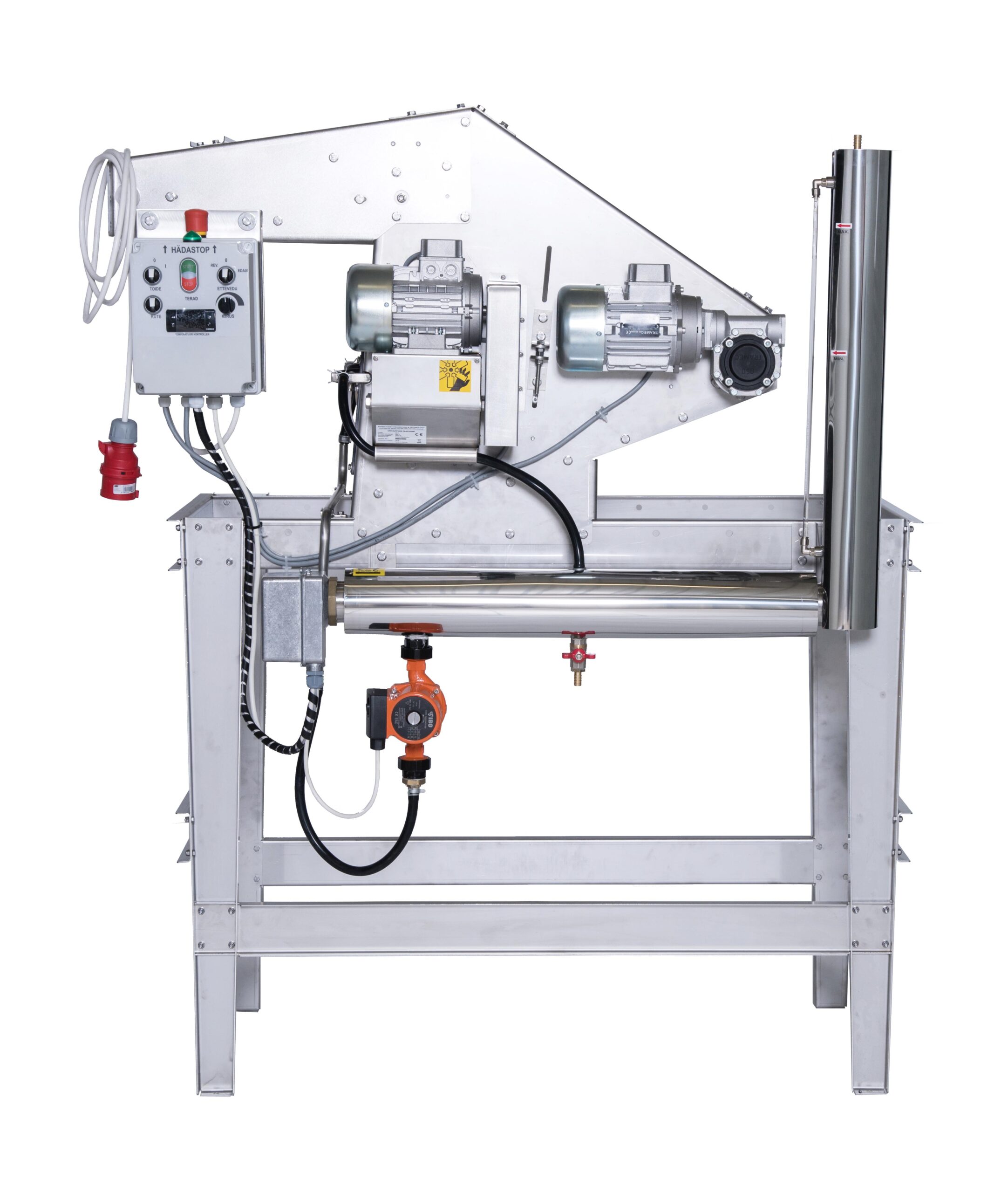

Large uncapping machine 400V

Model: UM/B400
The big uncapping machine is intended for uncapping honeycombs using hot cutting knives and comb loosener.
11034€ 9044€ (without VAT)
Send an inquiry!

  • Device manufactured in Estonia
  • 5-year warranty
  • Reliable quality

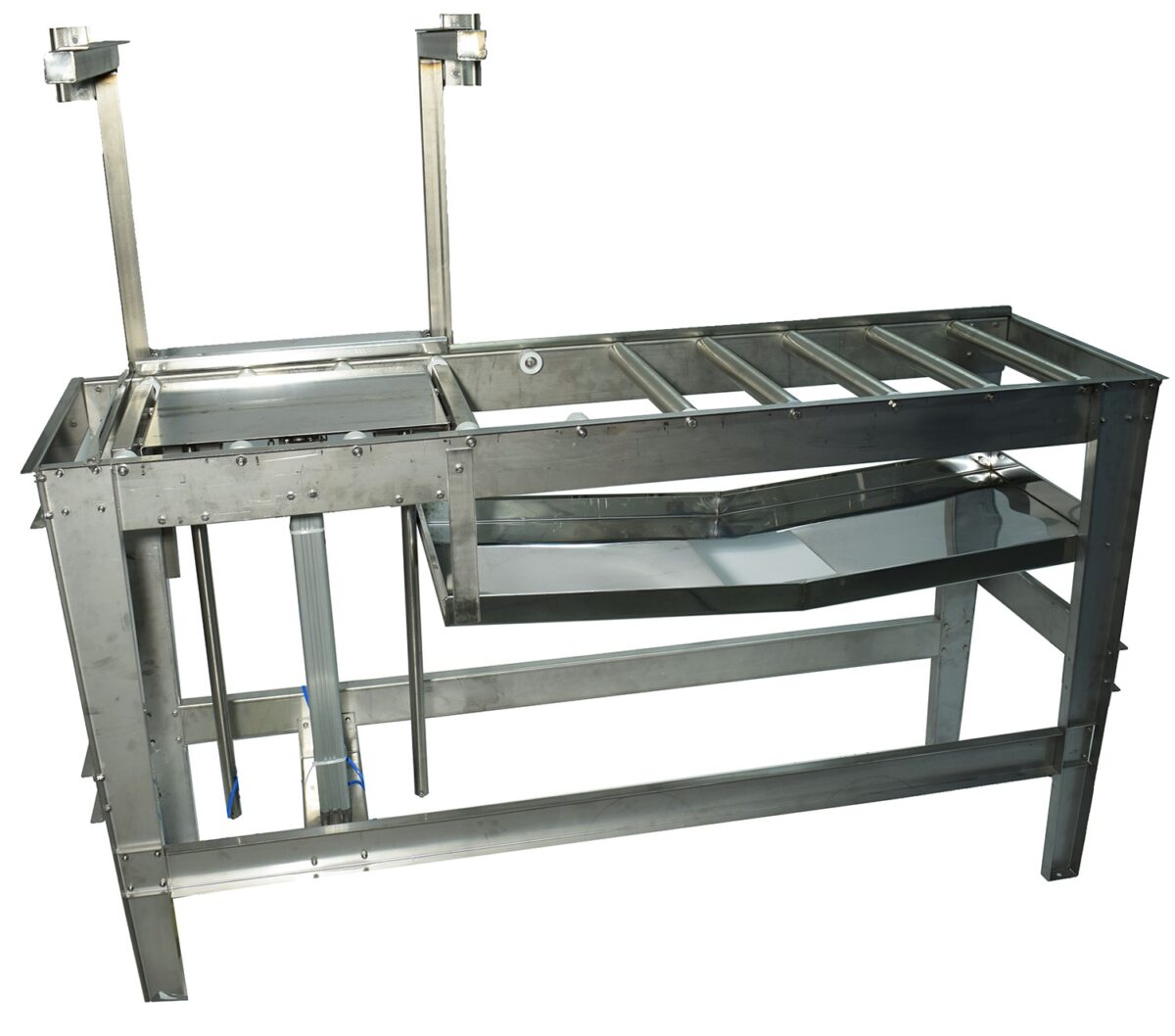

The big uncapping machine is equipped with feeding chains, so it is possible to connect a deboxer to the device.

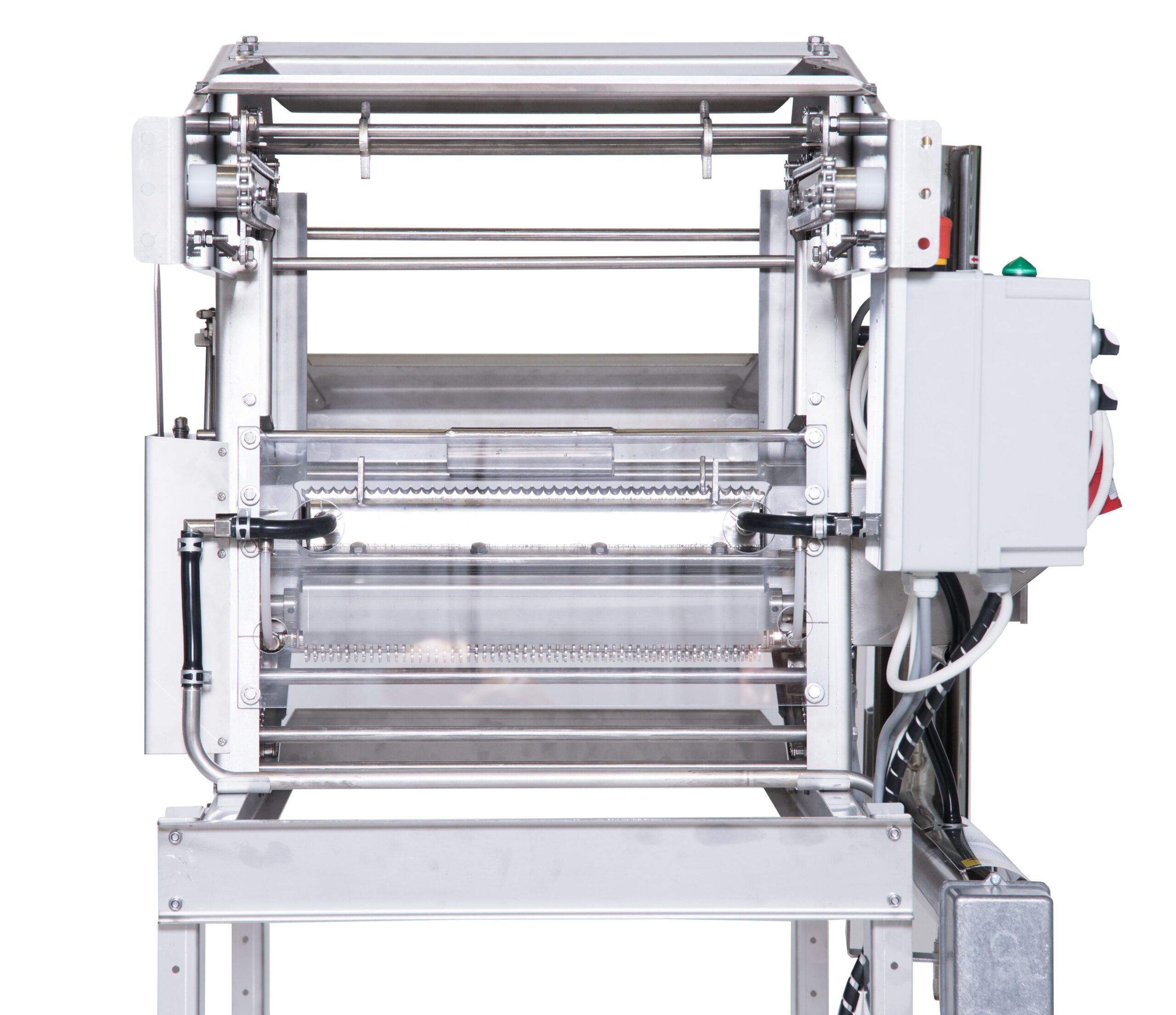

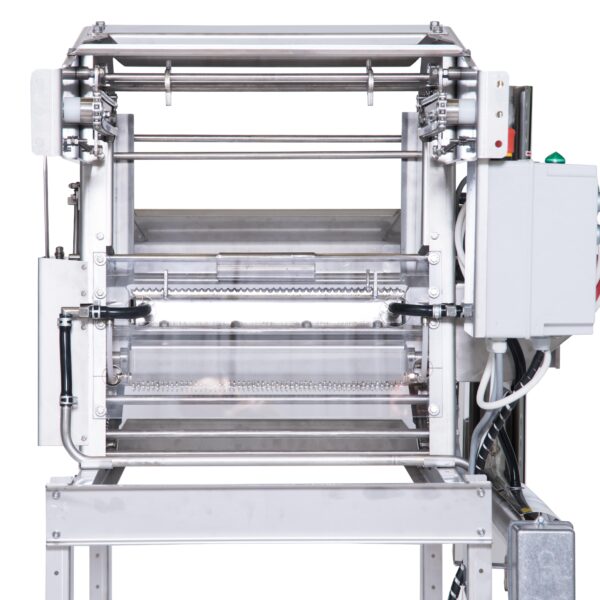

The big uncapping machine is equipped with two cutting knifes and comb loosener system.

The gap between the cutting knives is adjustable.

The cutting knives and the comb loosener system have a closed heating system that works on hot water.

Water capacity in the system 5l, heating is done with a 3kW stainless steel heater, the temperature can be regulated with a temperature controller up to 95 C`.

The big uncapping machine is on a 2500mm long frame, of which 2000mm is a drain bath.

The drainage bath holds 50-56 frames.

The big uncapping machine has a productivity of 6 to 10 frames per minute. Depends on the working speed and the structure of the honey comb.

Using the feed motor, the drain pan is automatically filled with uncapped frames.

These products, produced by Asten Honey production & technology, are suitable for the big uncapping machine: capping extruder, honey pump, honey filter and honey extractor.

By adding these products to the big uncapping machine, you have created a medium uncapping line solution for your apiary.

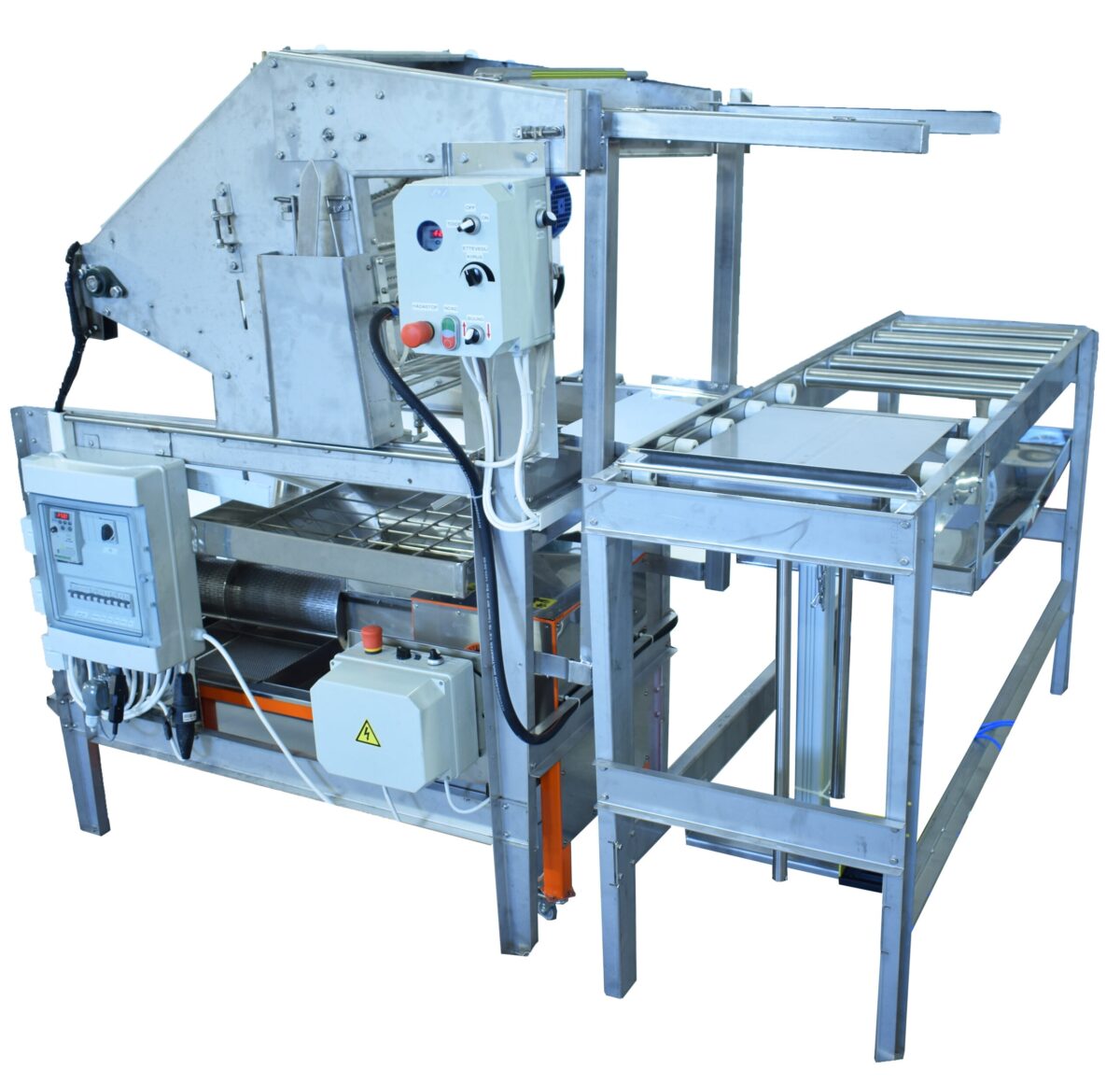

As the production of honey increases in your apiary, it is later possible to add to the big uncapping machine: first rails (with the mechanism for moving the frames), barrel extractor for 80 frames and rear draining rails.

This way you have created a fully automated line solution.

Technical specifications

  • Machine frame made of 2mm stainless steel AISI304
  • Uncapping machine mechanism details: chains, gears, shafts, frame guides, stainless steel housing AISI304
  • Fastenings made of stainless steel
  • Uncapping machine blades made of 2mm stainless steel AISI304
  • Stainless steel comb loosener system AISI304
  • Heated comb loosener system.
  • Blade heating system housing made from stainless steel AISI304
  • Plastic control panel IP65 class
  • Power cable 2.5×3
  • Power cable length 3m
  • Incoming electricity 380V
  • The maximum power of the device is 4225W
  • Feed motor power 0.25kW (Tramec)
  • Knife motor power 0.37kW (Tramec)
  • Worm gearbox KC40P (Tramec)
  • Frequency converter 0.4kW (Delta)
  • Heating system fluid capacity 5L
  • Heating system heater power 3kW
  • Heating system heater made of stainless steel AISI316
  • Heating system temperature sensor PT100
  • Heating system temperature controller ESM-3711
  • Overheating protection 110C´
  • Heating system circulation pump OHI25-40 / 180
  • 3 speeds can be selected between the heating system circulation pump
  • Heating system piping made of stainless steel and heat-resistant silicone hose
  • Uncapping machine productivity of 6 to 10 frames per minute.
  • Possibility to adjust the feed speed
  • Possibility to combine with capping extruder
  • Possibility to adjust the distance between the cutting knives
  • Possibility to set the hysteresis of the heating system
  • Drainage bath capacity of 50-56 frames depends on the type of frame
