Honey filter 125L with water jacket heating

Model: HF125W
The honey filter is intended for filtering waxy honey before honey storage.
1819€ 1491€ (without VAT)
Send an inquiry!

  • Device manufactured in Estonia
  • 5-year warranty
  • Reliable quality

The biggest time spent at the honey extracting stage is the cleaning of the small filter with a spoon.

By using Asten Honey production & technology honey filter to separate the wax from honey, you are using the freed time more wisely.

The honey filter holds up to175l of honey.

The device is equipped with a 1.2kW heater and has water jacket capacity of 25l.

All honey filter parts are made of 0.8mm thick stainless steel AISI304.

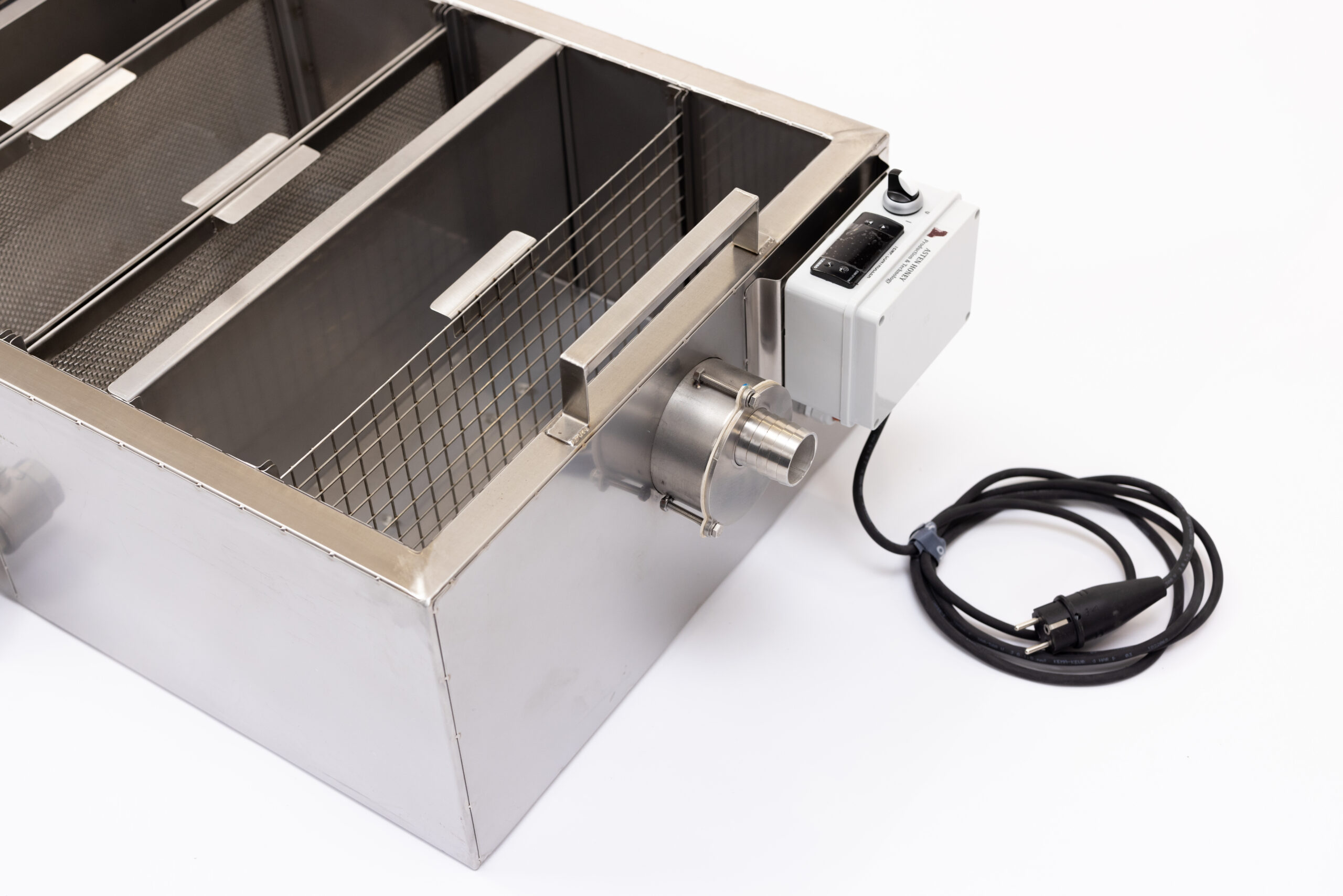

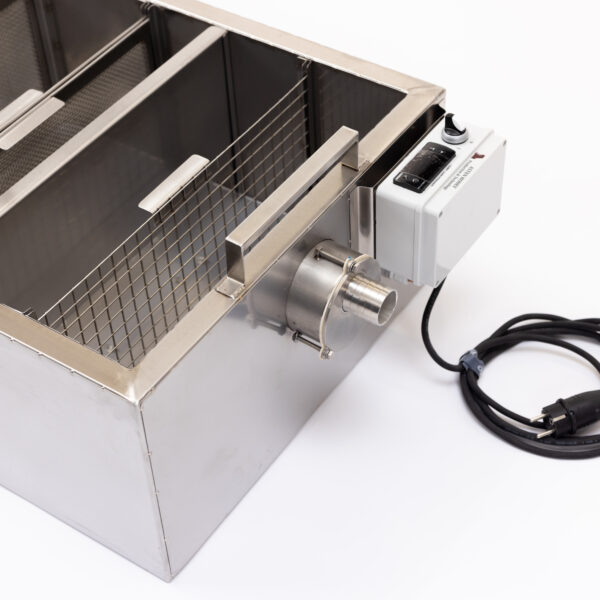

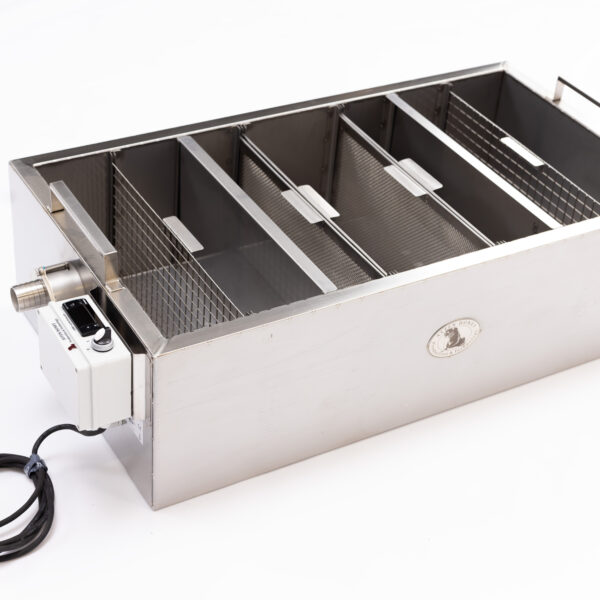

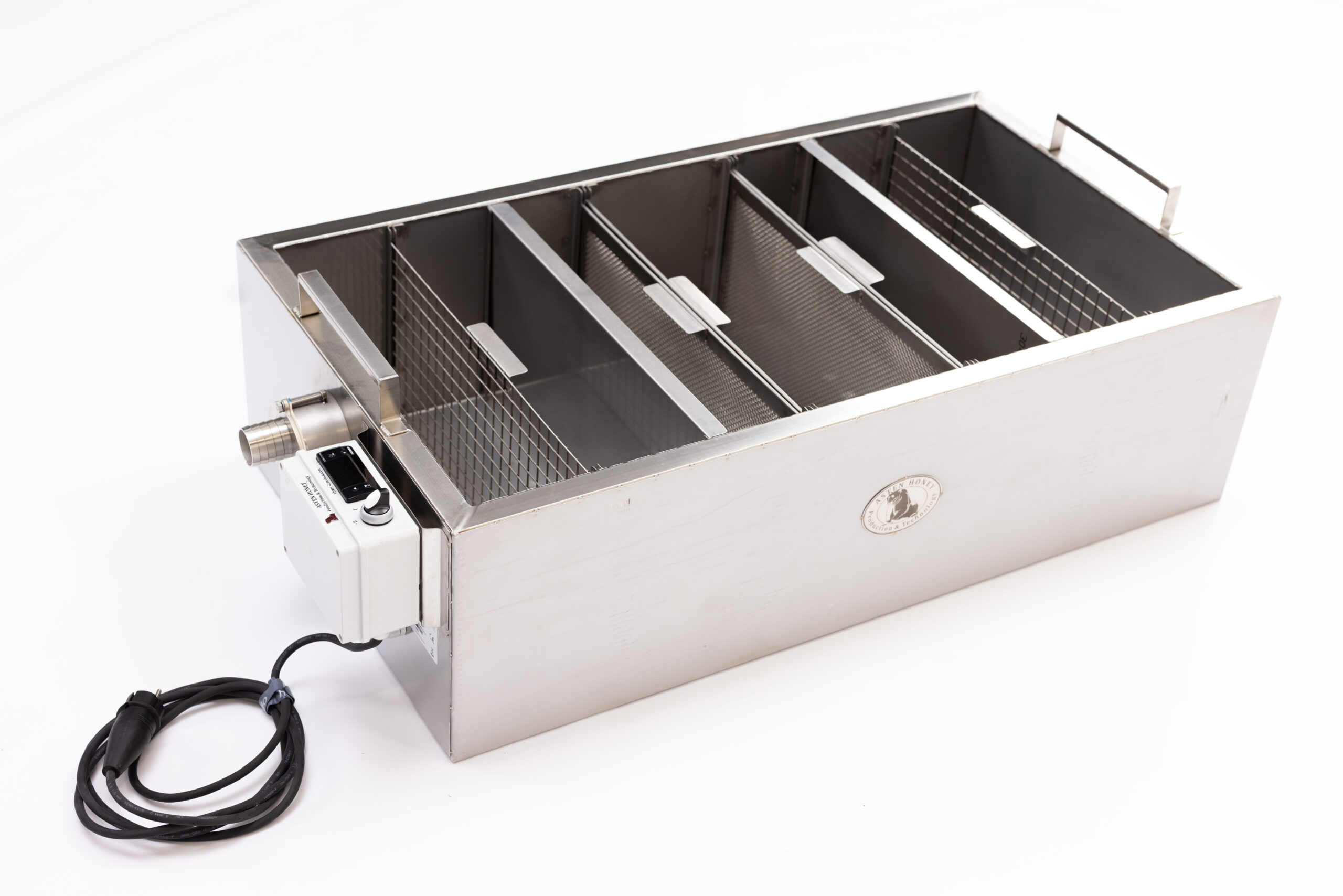

The wax filtration is done with 4 different size meshes, and the honey flow is adjusted with 4 stainless steel plates.

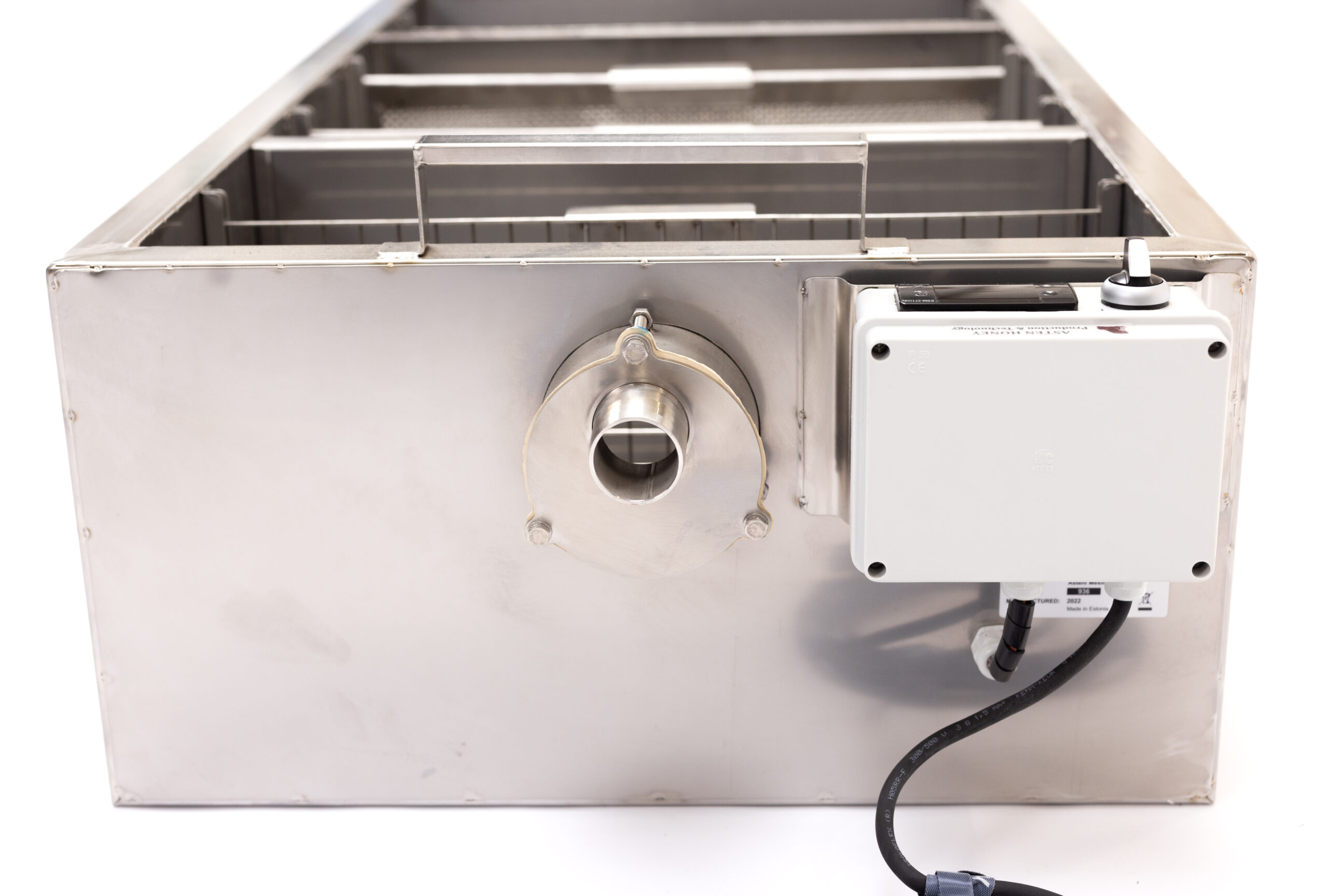

The honey filter has 3 openings in size 1 ¼“:

  • From the first opening at the first end waxy honey comes in from the capping extruder.
  • From the second opening at the second end waxy honey comes in from honey extractor.

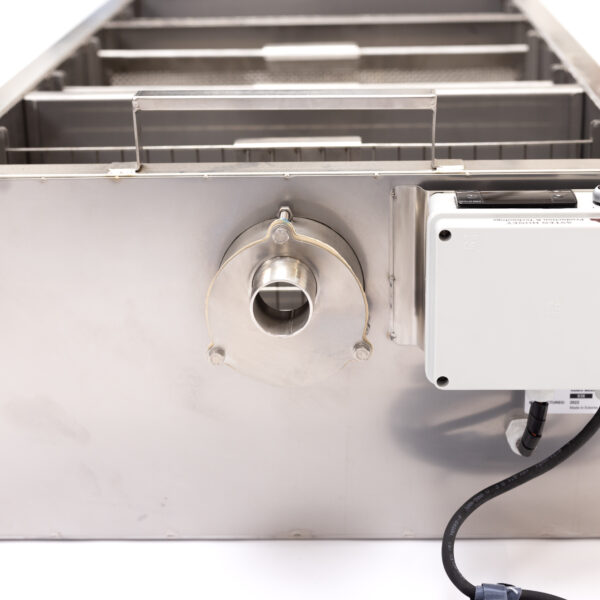

  • Filtered honey is pumped out from the middle opening to the storage tanks.

Honey filter can by equipped with quick connectors for hoses.

You can also add a level sensor to the honey filter (when the specified honey level in the filter rises, the sensor starts the honey pump produced by Asten honey production & technology.

Weight 30 kg
Dimensions 126 × 56 × 26 cm

Toote kõik osad roostevabast terasest.

Technical specifications

  • Power supply 220V
  • Total power 1200W
  • Weight 55kg
  • Capacity up to 175l
  • Capacity of the water jacket 25l
  • Temperature up to 55C`

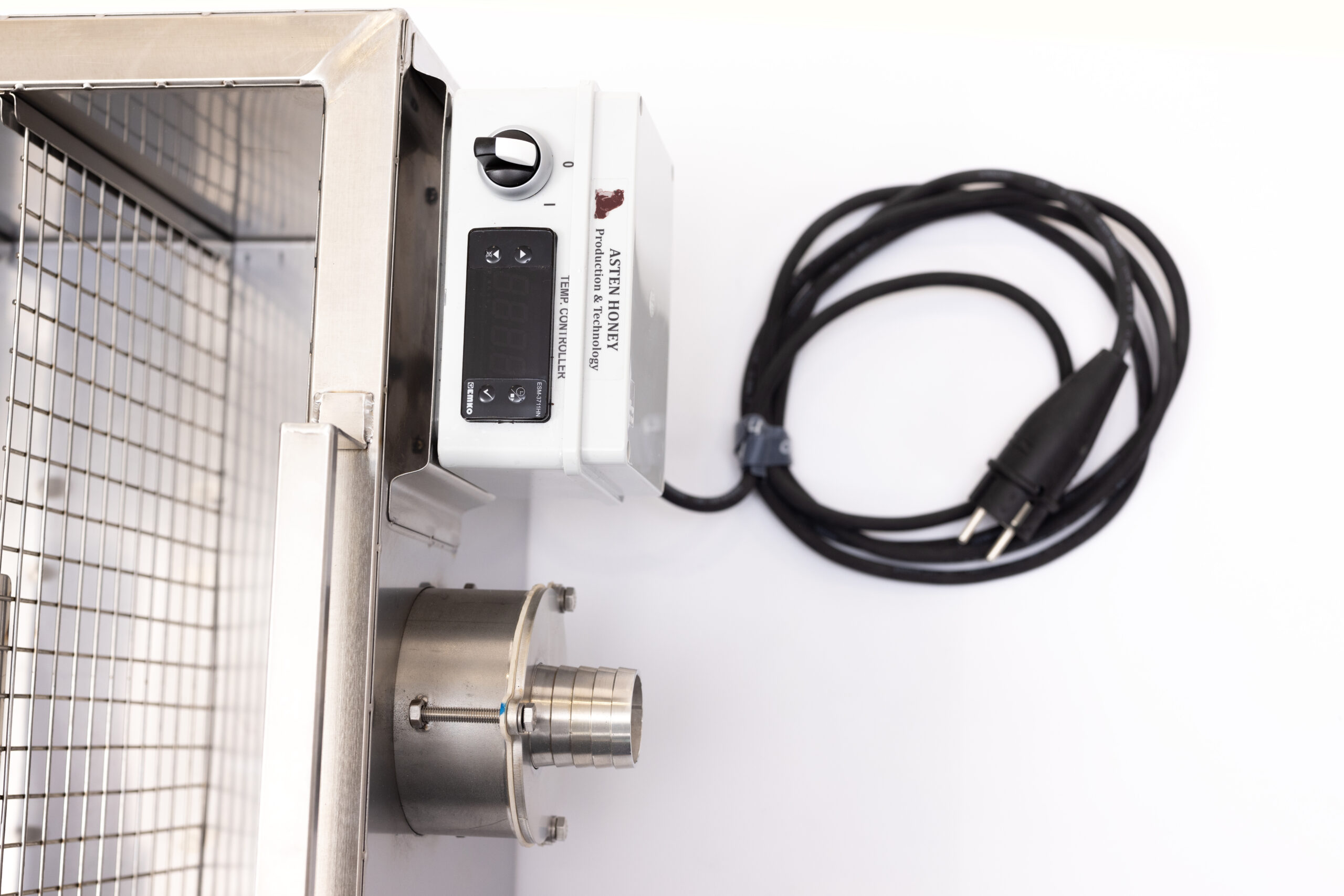

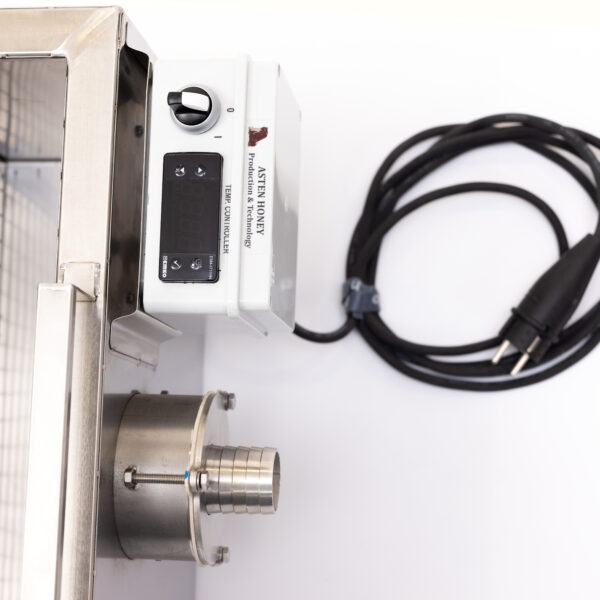

  • Temperature controller ESM-3711
  • The device is made of stainless steel AISI304 0.8mm

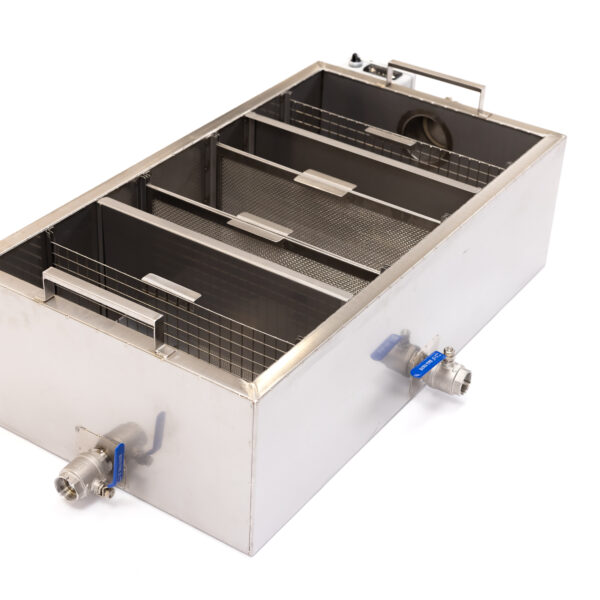

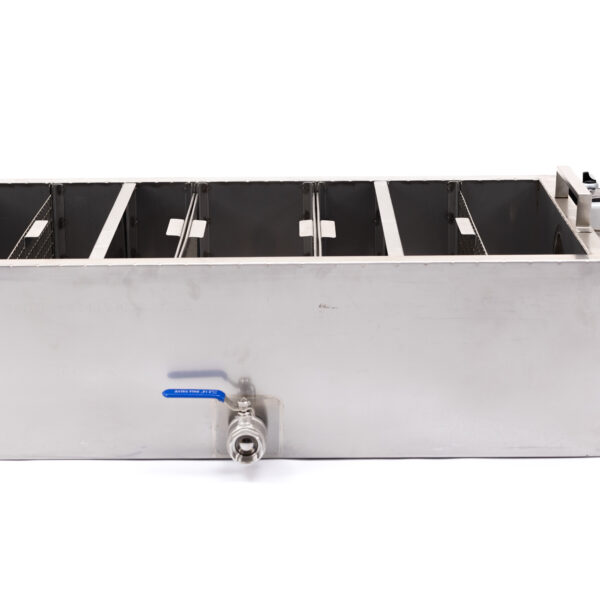

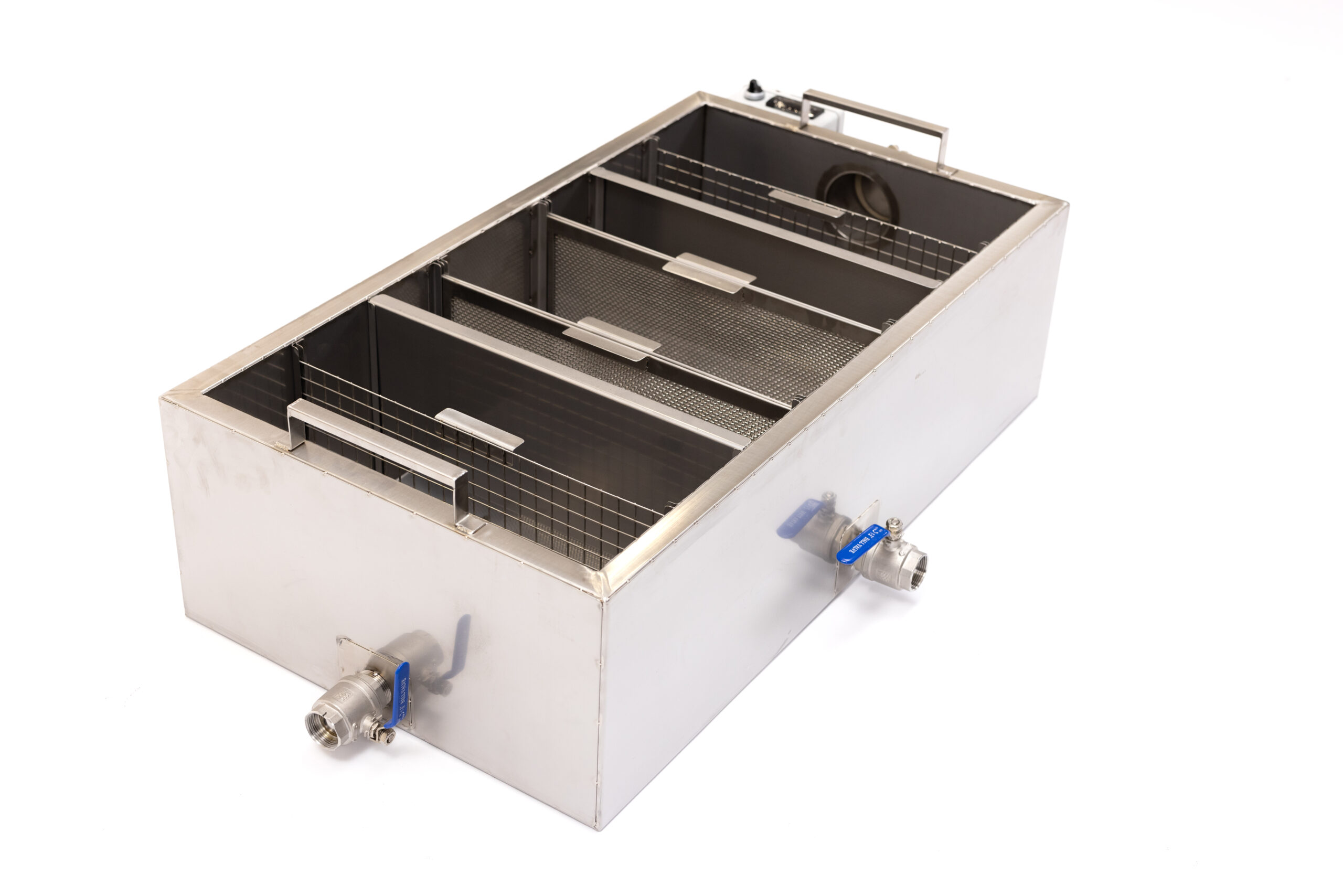

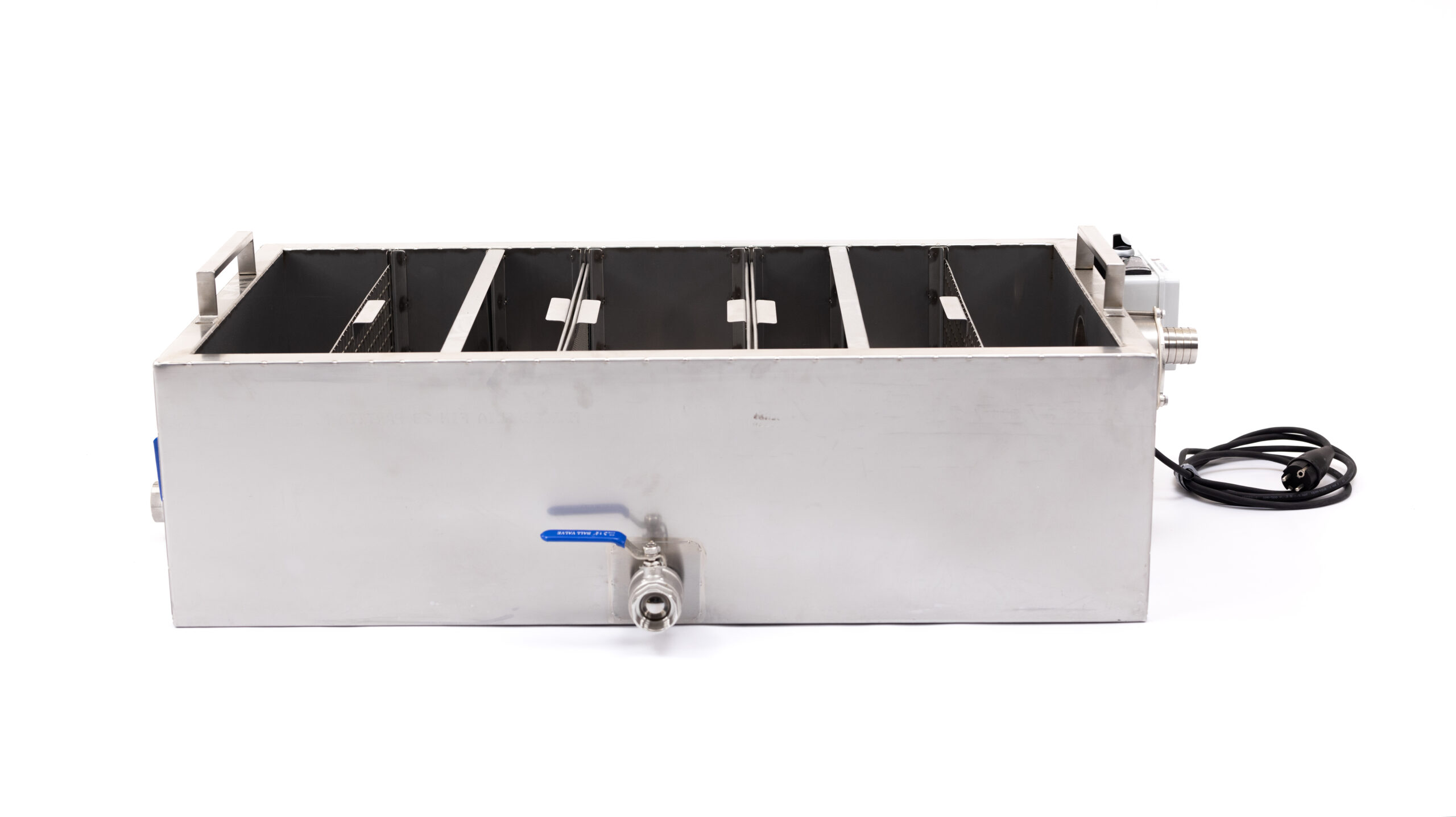

  • Stainless ball valve 1 ¼“
  • Openings 3 pcs
  • 4 filter meshes
  • 4 pcs stainless steel plates for adjusting the flow
  • Possibility to install a level sensor


  • External dimension – length 1200x width 600x height 290mm
  • Internal size – length 1140x width 550x height 260mm
